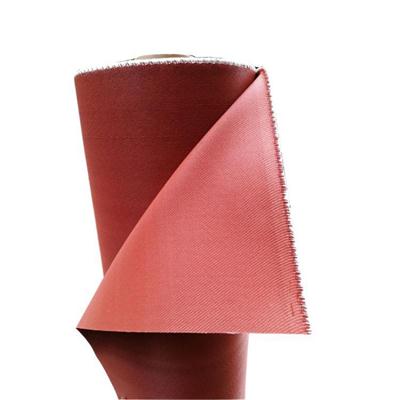

Silicone Fiberglass fabric is one kind of high performance and multi-purpose compound material which is made of silicone emulsion coated fiberglass with unique technology.
Features of Silicone Fireproof Fabric:
1. Heat and cold resistance, good performance in heat preservation.
2. High strength, soft and flexible.
3. Chemical resistance, oil and water proof.
4.Heat resistance, weather resistance, resistant to ozone, oxygen, light and so on.
5. High insulation performance, dielectric constant 3-3.2, breakdown voltage 20～50KV/MM.
Applications of Silicone Fireproof Fabric:
1. Electric Insulation: Silicone rubber coated fiberglass cloth features high grade of electric insulation and bear a load of high voltage. It fits for making products like insulation cloth and sleeves etc.
2. Non-metallic compensator: used as pipeline flexible coupling, non-metallic compensator helps to avoid damage caused by heat expansion and cold contraction. This material specially fit for use in industries of petroleum, chemical engineering, cement, iron and steel and energy sources due to its special features of temperature resistance, anti-corrosion, anti-aging, and good elasticity and toughness.
3. Anti-Corrosion function: It is good to be used as inner and outer anti-corrosion layer featuring excellent corrosion, resistance, temperature resistance and high strength. It proves to be an ideal anti-corrosion material.
4. Others: Apart from above application, it can also be used as sealing material, temperature resistance and anti-corrosion conveyor belt and packaging material.
Main Specifications of Silicone Fireproof Fabric:
Item
Color
Thickness
Max Width
Weight
Breakdown Voltage
Temperature
CWF-S0280
Gray/Black/Red
0.23mm
1800mm
280±5g/m2
20~50 KV/mm
-70~260 ℃
CWF-S0510
Gray/Black/Red
0.43mm
1800mm
510±5 g/m 2
20~50 KV/mm
-70~260 ℃
CWF-S0570
Gray/Black/Red
0.45mm
1800mm
570±5 g/m 2
20~50 KV/mm
-70~260 ℃
CWF-S0760
Gray/Black/Red
0.60mm
1800mm
760±5 g/m 2
20~50 KV/mm
-70~260 ℃
CWF-S0800
Gray/Black/Red
0.62mm
1800mm
800±5 g/m 2
20~50 KV/mm
-70~260 ℃
CWF-S0860
Gray/Black/Red
0.65mm
1800mm
860±5 g/m 2
20~50 KV/mm
-70~260 ℃
CWF-S1080
Gray/Black/Red
0.85mm
1800mm
1080±5g/m 2
20~50 KV/mm
-70~260 ℃
CWF-S1400
Gray/Black/Red
1.00mm
1800mm
1400±5 g/m 2
20~50 KV/mm
-70~260 ℃
CWF-S1800
Gray/Black/Red
1.00mm
1800mm
1800±5 g/m 2
20~50 KV/mm
-70~260 ℃
CWF-S2450
Gray/Black/Red
1.50mm
1800mm
2450±5 g/m 2
20~50 KV/mm
-70~260 ℃
