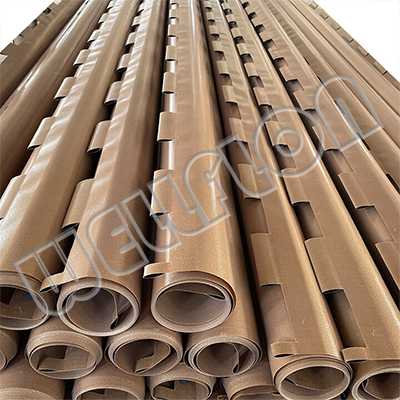

PTFE Solar Laminating Fabric

Brand: WELLFLON
Materials: PTFE , Fiberglass
Features:100% Nonstick, High Temp Resistant
Temp Resistance: -70°C to +280°C
Product description: PTFE Laminated Fabric for solar cell laminating machine applies high quality glass fabrics combined with specially formulated high level of PTFE content to produce super smooth, high-gloss surface coating.
INQUIRY

PTFE Laminated Fabric for solar cell laminating machine applies high quality glass fabrics combined with specially formulated high level of PTFE content to produce super smooth, high-gloss surface coating. In addition to providing the properties of excellent release, abrasion resistance, low friction and chemical resistance, PTFE laminated fabrics are dimensionally stable from -70°C to +260°C. Because of their non-toxic, odorless and tasteless qualities they have been approved for the Application of Solar Panel Laminating.

Properties of PTFE Solar Laminating Fabric:

1. Superior non-stick surface, enables lifetime as a laminator sheet.

2. Excellent dimensional stability and strong tensile strength due to glass fabrics.

3. Outstanding temperature resistance from -170°C to 260°C.

4. Strong resistance to all chemicals, do not worry about the bad effect caused by chemicals during production.

5. Reusable, enables your working efficiency.

We Recommend the Sizes of PTFE Solar Laminating Fabric:

Normal sizes: 2.2m×3.6m;2.2m×5.4m;1.2m×2.3m

Other sizes can also be made.

We also have PTFE laminated fabric with rough surface on one side which is applied as conveyor belt for the solar cell to go through automatic laminating machine.

Physical Characteristic of PTFE Solar Laminating Fabric:

Item No.	Color	*Thickness (mm)*	*Weight of Fiberglass(g/m2)±3%***	*Total Weight (g/m2) ±5%*	*Tear Strength (N/5cm) ±5%*		*Temperature Resistance***
Item No.	Color	*Thickness (mm)*	*Weight of Fiberglass(g/m2)±3%***	*Total Weight (g/m2) ±5%*	*Warp*	*Weft*	*Temperature Resistance***
CWF-0070	black/white/brown	0.065	48	70	500	460	-70 ~+280℃
CWF-0150	black/white/brown	0.07	48	150	650	550	-70 ~+280℃
CWF-0165	black/white/brown	0.08	48	165	700	600	-70 ~+280℃
CWF-0130	black/white/brown	0.095	105	130	820	800	-70 ~+280℃
CWF-0220	black/white/brown	0.105	105	220	900	750	-70 ~+280℃
CWF-0230	black/white/brown	0.115	105	230	1150	1000	-70 ~+280℃
CWF-0250	black/white/brown	0.125	105	250	1200	1100	-70 ~+280℃
CWF-0300	black/white/brown	0.14	105	300	1350	1250	-70 ~+280℃
CWF-0350	black/white/brown	0.17	165	350	1750	1550	-70 ~+280℃
CWF-0360	black/white/brown	0.18	165	360	1800	1650	-70 ~+280℃
CWF-0275	black/white/brown	0.2	205	275	2000	1800	-70 ~+280℃
CWF-0440	black/white/brown	0.22	205	440	2400	1650	-70 ~+280℃
CWF-0490	black/white/brown	0.23	205	490	2200	1750	-70 ~+280℃
CWF-0500	black/white/brown	0.24	205	500	2200	1850	-70 ~+280℃
CWF-0500	black/white/brown	0.25	205	500	2500	2000	-70 ~+280℃
CWF-0620	black/white/brown	0.28	293	620	2500	1800	-70 ~+280℃
CWF-0385	black/white/brown	0.31	283	385	1900	1400	-70 ~+280℃
CWF-0620	black/white/brown	0.32	255	620	3000	2100	-70 ~+280℃
CWF-0690	black/white/brown	0.35	333	690	3200	2200	-70 ~+280℃
CWF-0770	black/white/brown	0.39	333	770	3200	2100	-70 ~+280℃
CWF-0540	black/white/brown	0.43	405	540	3500	2400	-70 ~+280℃
CWF-1000	black/white/brown	0.53	538	1000	4200	3500	-70 ~+280℃
CWF-1180	black/white/brown	0.63	578	1180	4500	3800	-70 ~+280℃
CWF-1550	black/white/brown	0.78	768	1550	5500	4000	-70 ~+280℃
CWF-1600	black/white/brown	0.9	865	1600	6500	5500	-70 ~+280℃
CWF-1250	black/white/brown	0.98	852	1250	6000	5000	-70 ~+280℃
